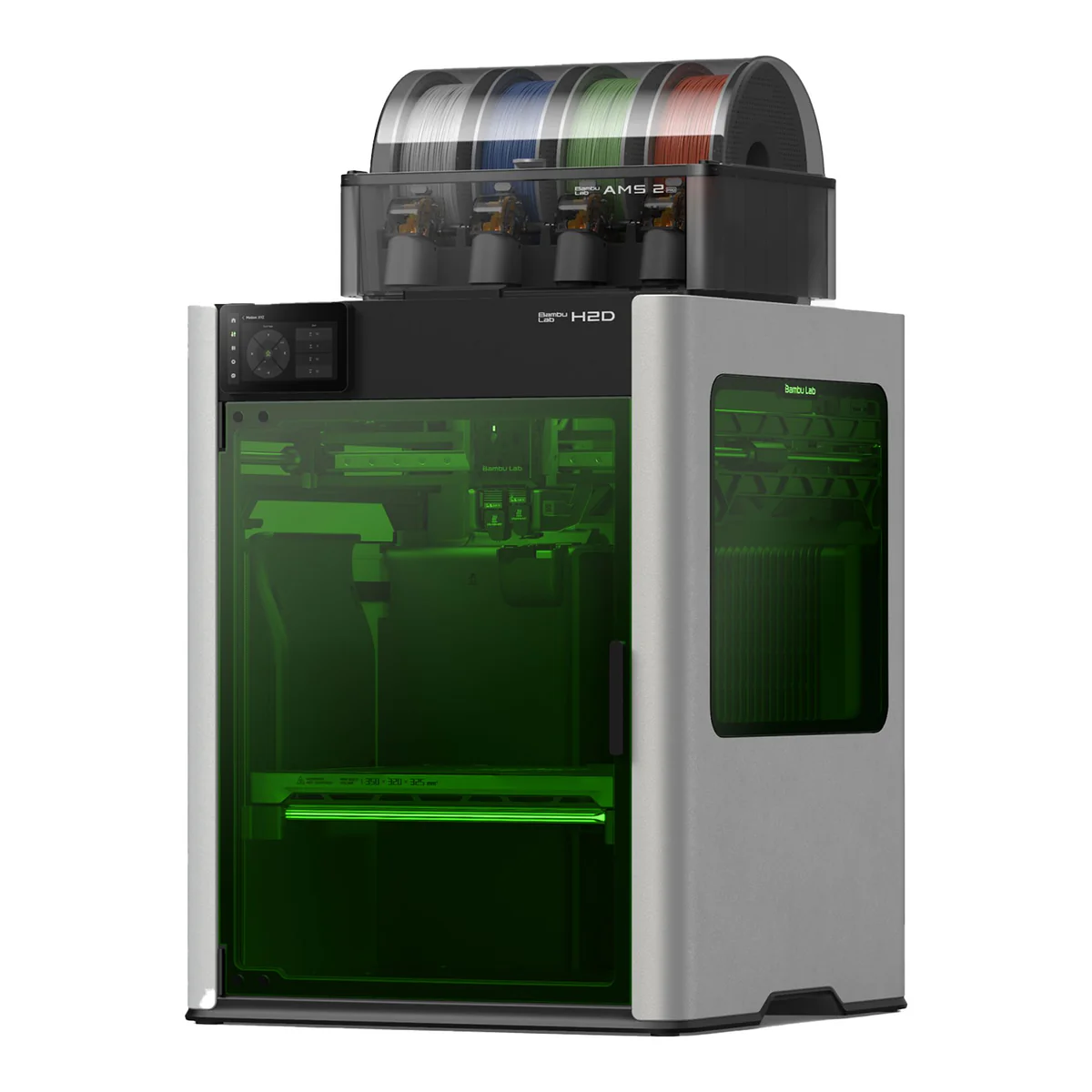

Bambu Lab H2D 3D Printer
A dual-nozzle FDM/FFF 3D printer built for multi-material and multi-color printing. It supports optional laser and cutting modules and is designed for mid-size functional parts and prototyping workflows.
System Capabilities
The Bambu Lab H2D is a dual-nozzle FDM/FFF printer designed for multi-material and multi-color printing. It uses a full-featured Bambu control system and supports optional laser and cutting modules when installed.
It is intended for functional prototypes, end-use parts, and mid-size models, with support for engineering filaments depending on configuration.
Operating Modes
Single-Extrusion Printing
Full build area printing with one nozzle for single-material jobs.
Dual-Extrusion Printing
Two nozzles for multi-material or multi-color parts.
AMS-Assisted Printing
Automatic material handling with AMS 2 Pro or AMS HT systems.
Laser and Cutting Modules (Optional)
Optional laser engraving/cutting and blade or pen modules when installed.
Technical Specifications
| Technology | FDM/FFF, 1.75 mm filament |
|---|---|
| Build Volume (Single) | 325 x 320 x 325 mm |
| Build Volume (Dual) | 300 x 320 x 325 mm |
| Total Reachable Volume | 350 x 320 x 325 mm (both nozzles) |
| Nozzle | 0.4 mm included; 0.2 / 0.6 / 0.8 mm supported |
| Max Nozzle Temperature | 350 C |
| Build Plate | Flexible textured PEI (smooth PEI optional) |
| Physical Size | 492 x 514 x 626 mm |
| Net Weight | 31 kg |
Comparison: Dual-Extrusion vs. Traditional FDM
Comparing the H2D dual-nozzle system against a typical single-nozzle FDM printer.
| Feature | H2D Dual Nozzle | Traditional Single Nozzle |
|---|---|---|
| Multi-Material | Two active nozzles for dual materials/colors | Requires manual swaps or purge-heavy solutions |
| Support Materials | Dedicated support or secondary material | Single material at a time |
| Material Handling | AMS-assisted workflows available | Manual spool management |
| Workflow Expansion | Optional laser/cutting modules | 3D printing only |
| Build Volume | Large format dual-nozzle volume | Varies by model, often smaller |
Common Applications
Accessories
Accessories for the Bambu Lab H2D system.
