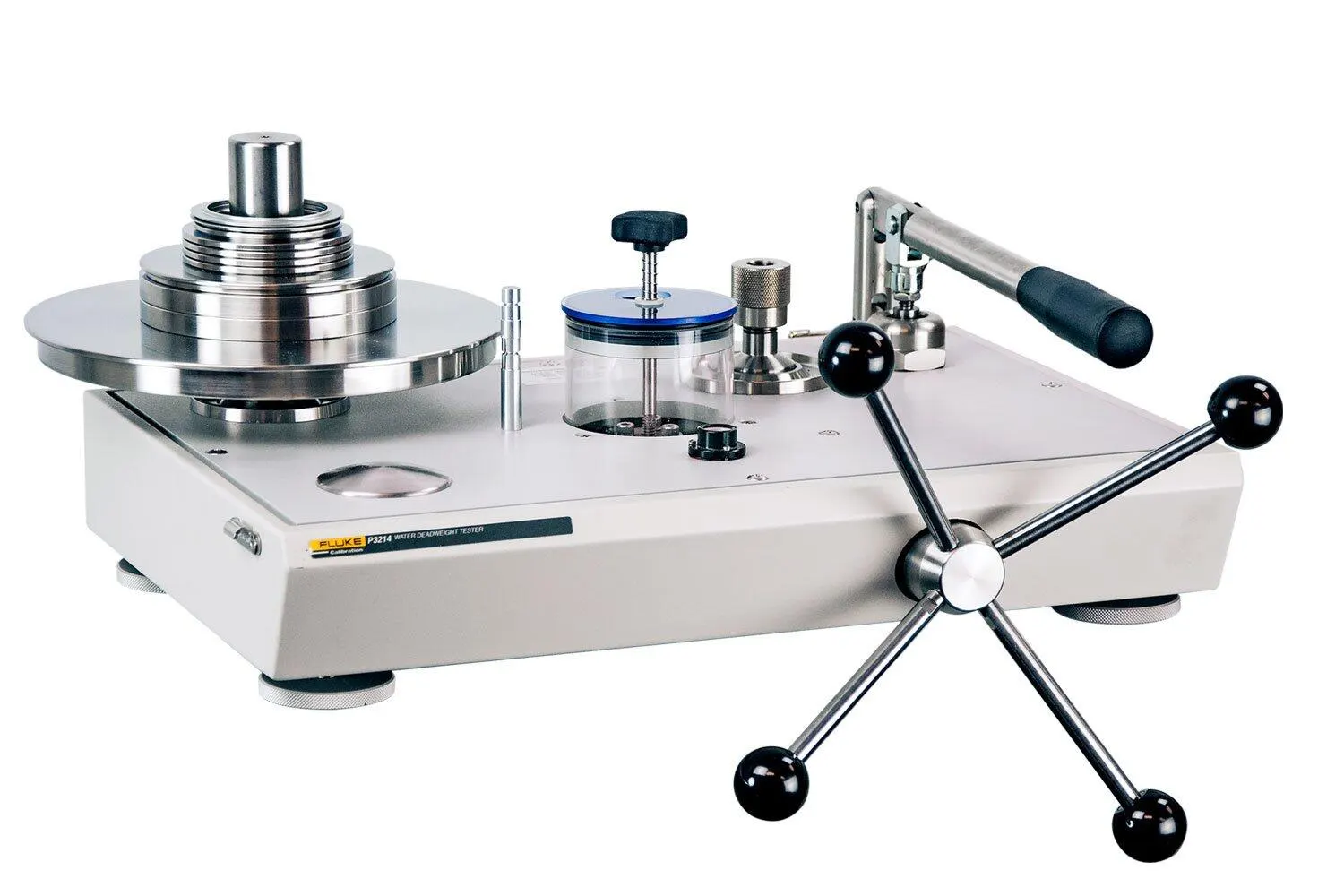

Fluke P3114 Oil Deadweight Tester
A hydraulic deadweight tester for precise pressure calibration. The P3114 provides accurate, traceable pressure generation for calibrating gauges and pressure sensors.
System Capabilities
The P3114 is part of Fluke's P3100 series hydraulic deadweight testers. It generates precise pressure using calibrated mass and piston-cylinder assemblies, suitable for high-accuracy calibration.
The system supports traceable calibration for gauges, transducers, and pressure instruments.
Operating Modes
Deadweight Pressure
Generate pressure by applying calibrated weights.
Piston Rotation
Maintain stability and reduce friction for accuracy.
Gauge Calibration
Compare DUT readings to generated pressure.
Traceable Results
Support calibration traceability requirements.
Technical Specifications
| Pressure Range | 200 to 10000 psi (15 to 700 bar) |
|---|---|
| Accuracy | 0.015% of reading |
| Medium | Oil / hydraulic |
| Series | Fluke P3100 series |
| Pressure Generation | Deadweight piston-cylinder method |
| Typical Use | Calibration of gauges and pressure sensors |
Comparison: This System vs Conventional Alternative
A high-level comparison to highlight performance and workflow advantages.
| Feature | This System | Conventional Method |
|---|---|---|
| Precision | Higher accuracy and repeatability | Standard tolerance |
| Workflow | Streamlined and automated | Manual or multi-step |
| Throughput | Faster turnaround | Slower cycle time |
